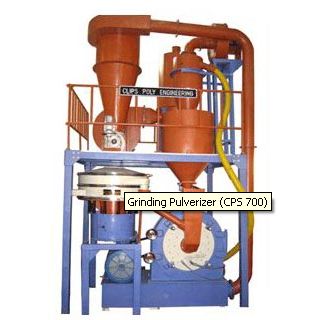

CPS Series Pulverizers


CPS Series Pulverizers


CPS Series Pulverizing Systems features Closed circuit grinding system.with Heavy duty welded steel construction. Cycle working completely automatic with every safety system. The disk blades are realized in special hardened steel. The system causes a depression in the grinding chamber so the disk blade remain always clean, no material agglomerates hence blade life is prolonged. Stationery grinding disk , bearings , mill housing water cooled. The material stays in grinding chamber for a very short time. This doesn̢۪t allow the material to heat itself, so a lot of materials can be pulverised at ambient temperature. With an adjusting system of the distance between the two disks. The grinding blade can be re-sharpened for extended life.


Specifications

Model CPS
No. Of Mills 1
Cutting Disc Size 18" abrasive resisitant
Grinding Element Segments (Each segment two pitch)
Throughput 150 kg/Hr (virgin)@ 75*F
Grinding gap adjustment External
Total Connected Power 38 Kw
Mill motor 30 Kw
Blower 5.6 Kw
Sifter Centrifugal 1 Deck 1.5 kw
Control System PLC
Current 3 Ph 50 Hz( or as reqd. )
Pallet sub hopper 14 cu.ft. 200 kg
Floor Area 4000 x 3070 mm
