Extrusion Line


Extrusion Line


Suitable for compound palletizing , colouring palletizing ,reclamation palletizing with Heavy duty welded steel construction. Heavy duty gear box features high torque output and assures smooth flow performance. The barrel is manufactured from special alloy steel featuring maximum durability and long service life.

Specially designed screw and barrel assembly ensures excellent mixing and dispersion performance with five heating zones . Each zone is connected with temperature control system to provide maximum stability and accuracy of temperature control with thermo ΓΆ€“ retention heaters reduces heat loses and power consumption to a minimum . Sufficient guards and protective covers for human and equipment safety . Designed specifically for Rotomolding .


Specifications

Model CP-EX-115
Screw Dia 115
Strands Multiple
Output 150-175 kg / hr
Pallet Size 1.50 mm cube approx.
Connected load 65 hp
Current 3 ph , 50 hz
Cooling media Water
Space Required (L x W x H) 35' x 7' x 12'

Technical Specifications

Model Screw Dia Mm Strands Pallet Size Connected Load Cooling Media Floor Space Mtr
CP-EX-100 100 Multiple 1.5 mm cube 30 kw water 8.5 X 1.4 X 1.8
CP-EX-115 115 Multiple 1.5 mm cube 49 kw water 8.5 X 1.4 X 1.8
CP-EX-125 125 Multiple 1.5 mm cube 68 kw water 9.5 X 1.4 X 1.8

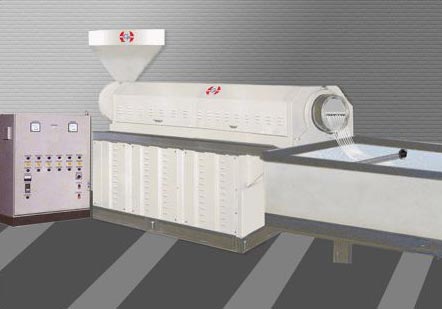

  • Image 01

  • Image 02
